Introduction

Unlock the power of dbt Explorer in this hands-on workshop designed for analytics engineers, data analysts, stakeholders, and data leaders.

This quickstart guide accompanies the Explorer hands-on workshop and helps you dive into a production-level dbt Mesh implementation and discover how to explore your data workflows.⁠ Whether you're looking to streamline your data operations, improve data quality, or self-serve information about your data platform, this workshop will equip you with the tools and knowledge to take your dbt projects to the next level.

By the end of the guide and workshop, you'll understand how to leverage dbt Explorer and have the confidence to navigate multiple dbt projects, trace dependencies, and identify opportunities to improve performance and data quality.

What you'll learn

In this guide, you will learn how to:

• Navigate multiple dbt projects using dbt Explorer
• Self-serve on data documentation
• Trace dependencies at the model and column level
• Identify opportunities to improve performance and data quality

Prerequisites

• Familiarity with data platforms

Setup

Now we’ll be creating your dbt Cloud account and connecting it to a data warehouse.

1. Go to this URL (sign out if you're already logged in): https://cloud.getdbt.com/coalesce-workshop-signup
2. Enter your first name and last name.
3. Select the Exploring a dbt Mesh implementation with dbt Explorer option.
4. Use the passcode provided by the workshop facilitator.
5. Agree to the terms of service and click the Complete Registration button.
6. Wait about 30 seconds, you’ll be in the dbt Cloud account for this workshop and already connected to a data warehouse.
7. Toggle into the Platform project. Go to the Deploy tab and select Jobs from the dropdown menu.
8. Run each job you see by clicking on the job and then selecting Run. This will run the upstream project job in both a production and staging environment.
9. Toggle into the Analytics project. Go to the Deploy tab and select Jobs from the dropdown menu.
10. Run each job you see by clicking on the job and then selecting Run. This will run the downstream project job in both a production and staging environment.

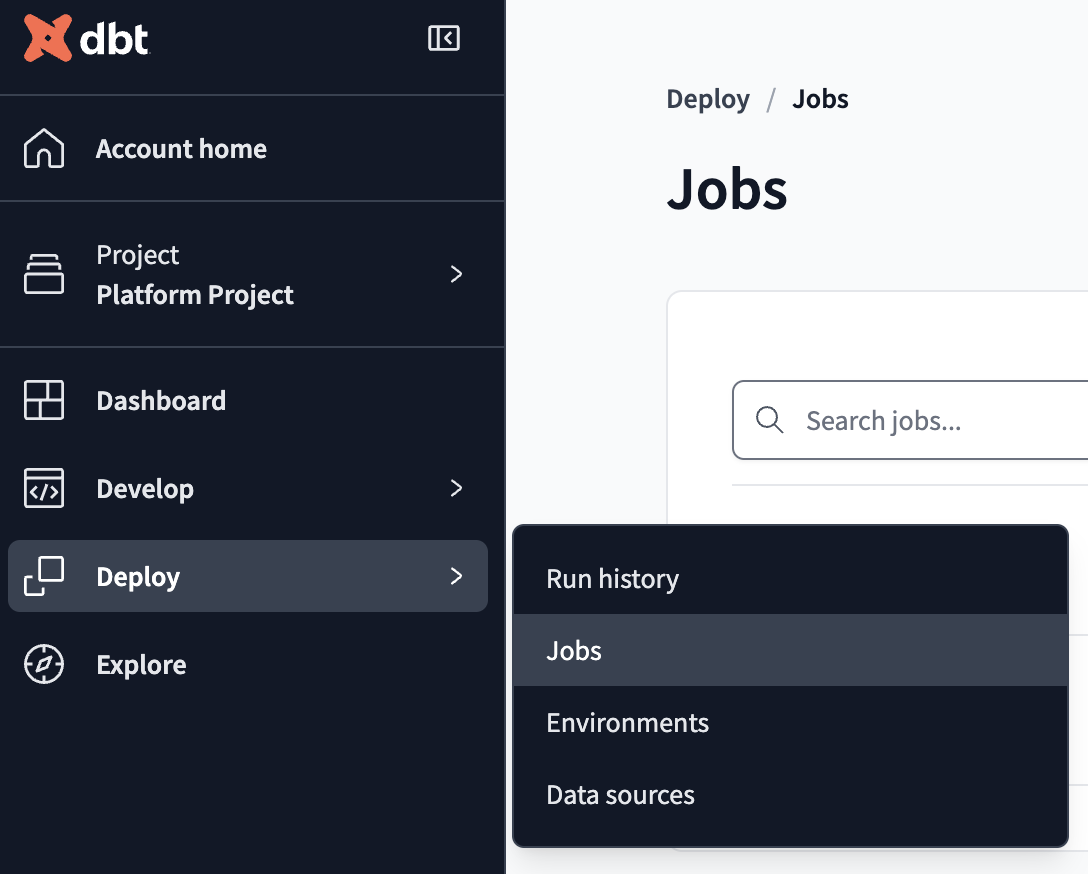

Click on the Jobs tab

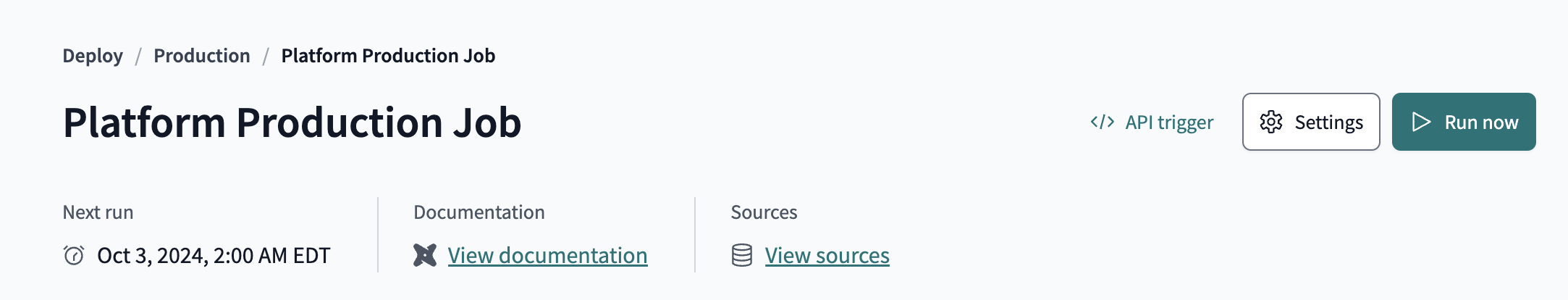

Run the jobs

Performance

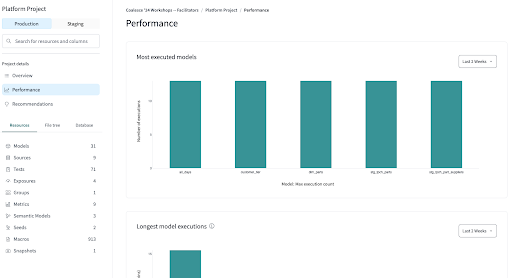

dbt Explorer's Performance tab

dbt Explorer will show you your project's most executed models, longest model executions, most failed models and tests, and most consumed models all in one place: The performance tab.

Hands-On

• Trigger the Daily Prod job to run again
• Explore the Performance tab on the Project details page
  • Which model took the longest over the last two weeks? Over the last month?
  • Which model failed the most tests?
  • Click on the model that took the longest to run in the Longest model executions graph
    • What is the average duration time over the last two weeks? Over the last month?
    • How often is the model being built? What is the Model Test Failure Rate?

Resources

With dbt Explorer, you can view your project's resources (such as models, tests, and metrics), their lineage, and model consumption to gain a better understanding of its latest production state.

Navigate and manage your projects within dbt Cloud to help you and other data developers, analysts, and consumers discover and leverage your dbt resources.

dbt Explorer's Models tab

Hands-On

• Explore the Model tab
  • Pick a model. What’s its row count?
  • Use the test results drop down to see if this model’s tests passed. What other models does it depend on?
• Explore the Tests tab
  • What tests do we see? Which tests have warnings? Failures?
• Explore the Sources tab
  • What sources can we see? Which sources have stale data? Which sources have fresh data?
• Explore Exposures
  • Use the lineage graph to find an exposure. Which models and metrics does the Exposure reference?

Lineage

dbt Explorer provides a visualization of your project’s DAG that you can interact with. The nodes in the lineage graph represent the project’s resources and the edges represent the relationships between the nodes. Nodes are color-coded and include iconography according to their resource type.

• Use the search bar and node selectors to filter your DAG.
• Lenses make it easier to understand your project’s contextual metadata at scales, especially to distinguish a particular model or a subset of models.
  • Applying a lens adds tags to the nodes, showing metadata like layer values, with color coding to help you distinguish them.

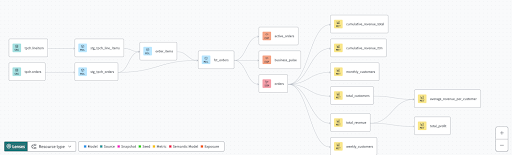

dbt Explorer's lineage graph

• Use the advanced search feature to locate resources in your project.
  • Perform hard searches and keyword searches.
  • All resource names, column names, resource descriptions, warehouse relations, and code matching your search criteria will appear in the center of the page.
  • Apply filters to fully refine your search.
• When searching for a column name, the results show all relational nodes containing that column in their schemas.

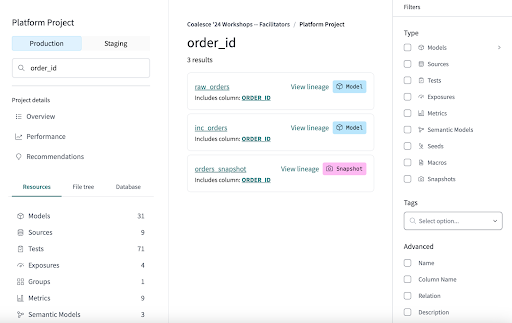

dbt Explorer's advanced search feature

Hands-On

• Explore Project-Level lineage
  • Pick a model and review its upstream and downstream dependencies
  • Which sources does this model depend on? Which models depend on this model?
• Explore Lenses
  • Apply the Test Status Lenses. Which models passed tests? Which had warnings?
  • Explore different lenses (Model Layer, Materialization Type, Resource). What information do you see?
• Explore Column-Level Lineage
  • Navigate to the model’s Model resource page and explore the primary key column’s Column-Level Lineage

Multi-project

Use dbt Explorer to gain a deeper understanding of all your dbt Cloud projects with its multi-project capabilities.

• See the number of public, protected, and private models, as well as metrics for each project.
• View cross-project lineage and navigate between individual projects’ lineage graphs.
• Explore column-level lineage across projects.

Hands-On

• In the lineage graph, filter the Platform Project’s Project-Level Lineage for Public models using the access:public filter
  • Make a note of which models are referenced by the analytics project.
• Explore the Analytics Project’s lineage
  • Choose a model in the Platform project referenced by the Analytics project.
  • Look at the multi-project column-level lineage of its primary key column.
  • Open the Analytics project’s lineage graph. Which models does it reference?

Project recommendations

These recommendations are designed to build trust in your project and reduce confusion.

To learn more about the specific suggestions and the reasons behind them, check out our docs.

dbt Explorer's project recommendation tab

Hands-On

• Review your project recommendations.
• Find the project recommendation for the model agg_daily_returned_orders.
• Add documentation to this model in the aggregates.yml file.

What's next

Congratulations! You've completed the dbt Explorer workshop. You now have the tools and knowledge to navigate multiple dbt projects, trace dependencies, and identify opportunities to improve performance and data quality.

You've learned how to:

• Use dbt Explorer to visualize your project’s lineage and interact with the DAG
• Search for resources in your project and apply filters to refine your search
• Explore lenses and find table materializations in your current project
• Navigate multiple dbt projects using dbt Explorer
• Trace dependencies at the model and column level
• Review project recommendations and implement improvements

For the next steps, you can check out the dbt Explorer documentation and FAQs to learn more about how to use dbt Explorer.

Keep an eye out for new features coming out soon, like:

• More auto-exposure integrations (like PowerBI and Tableau).
• Model query history for additional warehouses (like Redshift and Databricks)
• Improvements to data health tiles
